> TO PRESERVE THE QUALITY OF YOUR WATCH > How to use an adjustable three-fold clasp (Pointed tip diving type)

How to use an adjustable three-fold clasp (Pointed tip diving type)

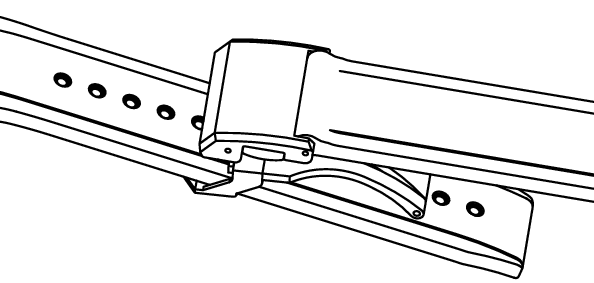

The rubber bands and some leather bands are provided with an adjustable three-fold clasp (Pointed tip diving type) of the type where the pointed tip of the band dives downward as shown in the figure.

If the clasp of the watch you purchased is of this type, please refer to the following instructions.

bandadjust D

How to wear or take off the watch

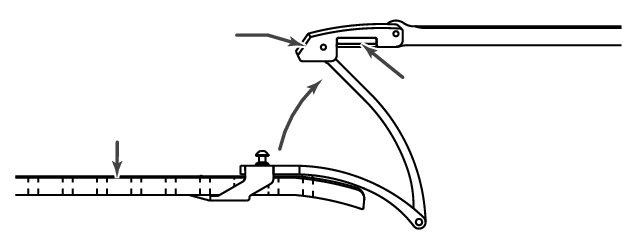

  1. Open the clasp and pull upward by pressing the push buttons on both sides of the buckle.

  2. Special clasps D-1.1 + Special clasps D-1

    Buckle

    Push button

    Band

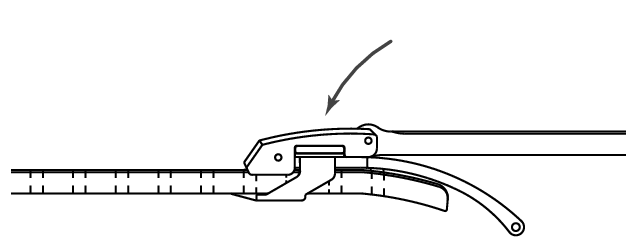

  3. Fasten the clasp by pressing the frame of the buckle.

  4. Special clasps D-1.2

How to adjust the length of the band

  1. Open the band clasp by pushing the buttons on both sides of the clasp.

  2. Special clasps D-1.1 + Special clasps D-1

    Buckle

    Push button

    Band

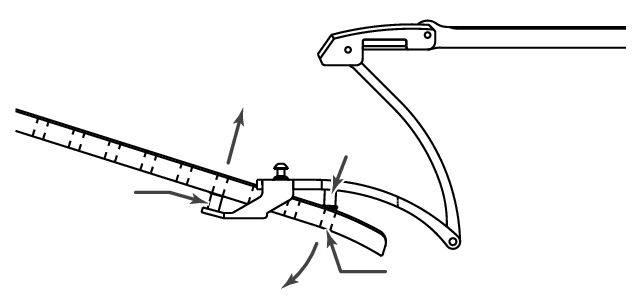

  3. Pull the pins out of the adjustment holes at both locations.

  4. Special clasps D-2.2 + Special clasps D-2

    Pin

    Pin

    Adjustment hole

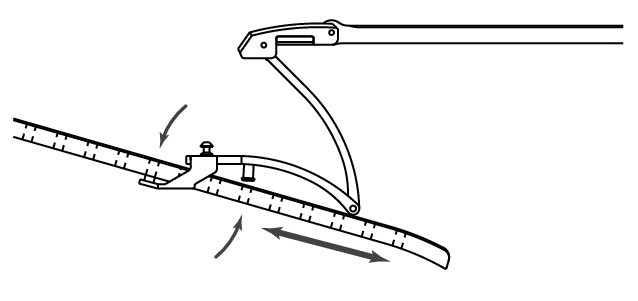

  5. Slide the band to the right and left and at an appropriate length, push the pins firmly into the adjustment holes again at those 2 locations.

  6. Special clasps D-2.3

The above illustrations are provided as examples. Some details may differ depending on the model.
