How to use the pull-through type band

This band has a mechanism that makes it easy to replace the band yourself.

Please read the instructions carefully before replacing the band.

First, remove the old band from the case.

Ensure that the spring bars are securely attached to the case.

Ensure that the buckle and fixed loops are fixed and attached securely to the band.

Spring bar

Tip of the band

Fixed loop

Fixed loop

Movable loop

Buckle

(12 o’clock side)

(6 o’clock side)

This may be a fixed loop.

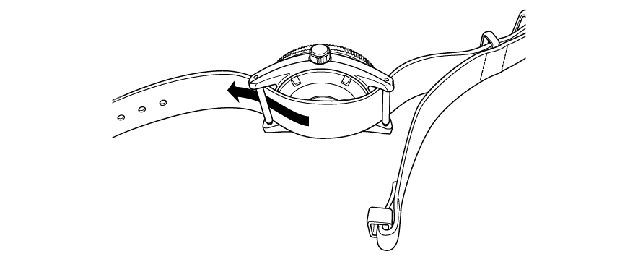

1. As illustrated, position the watch and band with the buckle on the 12 o’clock side and pass the tip of the band, from the top, between the 12 o’clock side of the case and the spring bar.



2. Pass the band across the back cover of the watch body and then between the 6 o’clock side of the case and the spring bar.



3. Pass the tip of the band through the fixed loop ① on the 6 o’clock side.

The band is now attached to the case, and the watch is ready to be worn on your wrist.



Fixed loop

Buckle

1. Place the watch body on your wrist, pass the tip of the band through the buckle, and set the band to the appropriate length.

2. Pass the tip directly through both the movable loop and the fixed loop ②.

As a guide, the band should be loose enough for a finger to fit between your wrist and the watch.



Fixed loop

Movable loop

This may be a fixed loop.

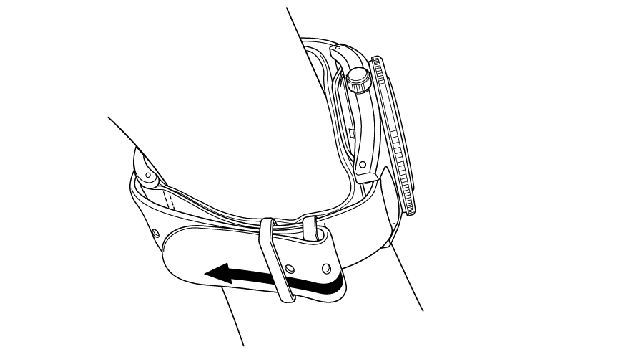

3. If the band is too long, fold and secure the tip of the band as illustrated.
